Auto-Focus AI Human Detection Network Camera
|
Specification |
|
|
Model |
AD-1010CI-5MP-5X |
|
Compression Format |
H.265+/H.265/H.264 |
|
Image Sensor |
1/2.8”CMOS Sensor |
|
Resolution |
2880*1620 / 2560*1440 / 2304*1296 / 1920*1080 / 800*448 / 640*480 / 640*360 / 352*288 |
|
Frame Rate |
1~30 fps |
|
Lens |
2.8~12mm Auto-Focus Lens |
|
Minimum illumination |
Color 0.01Lux,B/W 0Lux(IR LED ON) |
|
Electronic Shutter |
Auto Electronic Shutter |
|
LED |
8 IR LEDs / White Light (for night-time human detection) |
|
Image Flip |
Horizontal Mirror / Vertical Flip |
|
White Balance |
Auto White Balance |
|
Protocols |
RTSP/DHCP/NTP/TCP/IP |
|
Bit Rate |
500 Kbps~8000Kbps |
|
Network Interface |
RJ-45x1 |
|
Motion Detection |
Yes |
|
Storage |
Micro SD Card Supported (Up to 512GB) |
|
OSD |
Time Position / Time Display Format / Title Position |
|
Image Adjustment |
Brightness / Contrast / Saturation / Sharpness / Backlight |
|
LED Control |
Auto / Manual |
|
Date & Time |
Manual Setting / NTP |
|
Audio Compression |
G711 |
|
Microphone |
Supported |
|
Speaker |
Supported |
|
APP |
iOS / Android Supported |
|
User Authority |
Administrator / Operator / Visitor |
|
Video System |
50Hz/60Hz |
|
Web |
Chrome / Microsoft Edge |
|
Streams |
Dual Streams (Main Stream / Sub Stream) |
|
Power Supply |
DC 12V / 800mA |
|
POE |
IEEE802.3af |
|
Operating Temperature |
-40°C ~ +60°C |
|
Dimensions |
231 mm (L) X 80 mm (Ø) |
|
Weight |
0.98kg |
|

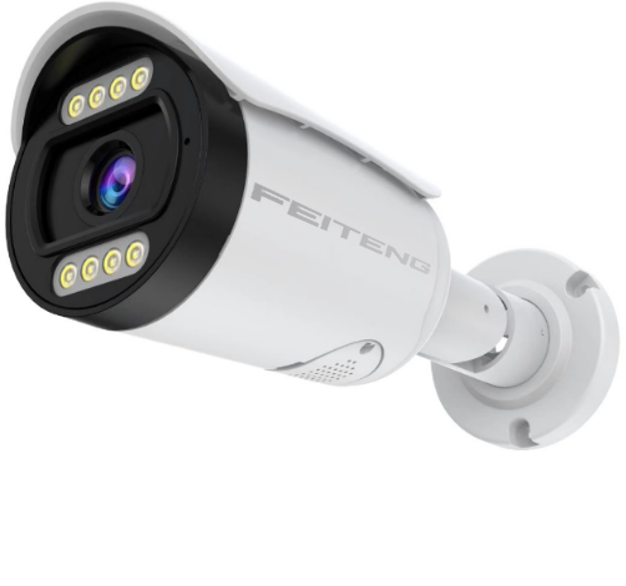

Appearance |
|
|
