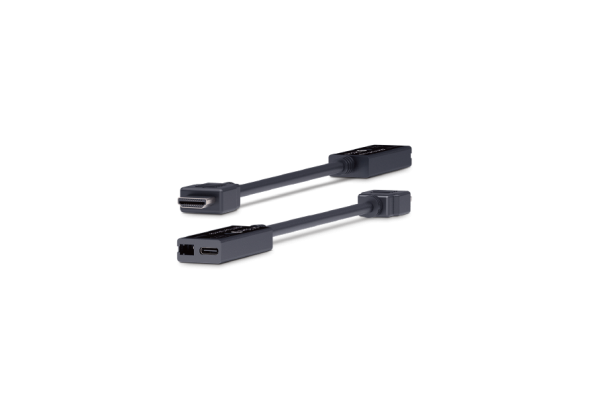

HE01FE-4K6G is an HDMI® extender that uses fiber optic cable with LC connection to transmit uncompressed 4K60Hz HDMI® signals.
It supports EDID and HDCP pass-through for multi-mode fibers. Its small, compact size and pig-tail design allow for easier installation in any AV application.
The HE01FE-4K6G is an HDMI® extender that uses fiber optic cable with an LC connector to transmit uncompressed 4K60Hz HDMI® signals. It supports EDID and HDCP pass-through over multi-mode fibers. Its small, compact size and pigtail design allow for easier installation in any AV application.
Optical fiber is one of the most advanced technologies for signal transmission. The HE01FE-4K6G uses a multi-mode fiber optic cable to carry a 4K60Hz HDMI signal over distances of up to 300m. The dongle-type/pigtail design ensures easy installation.

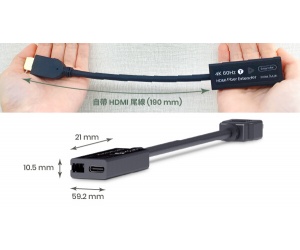

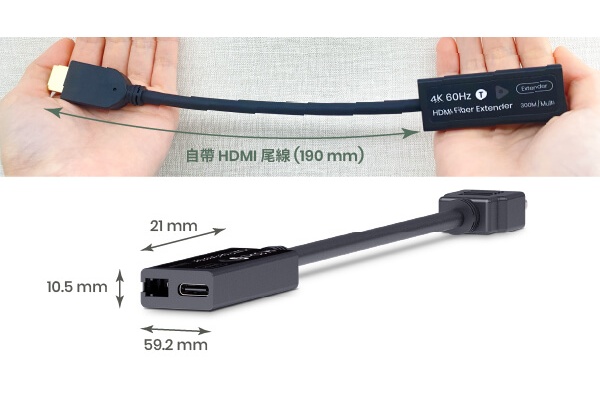

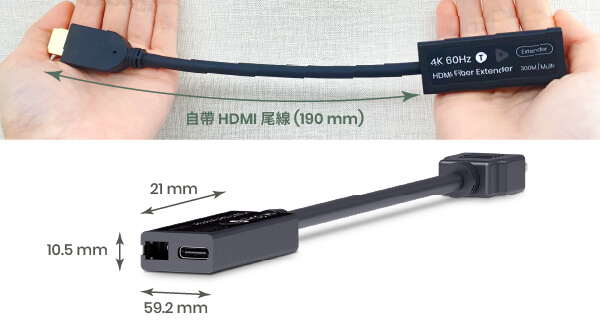

The extender measures just 62.2 × 25 × 12 mm and features a 190 mm HDMI pigtail for flexible installation.

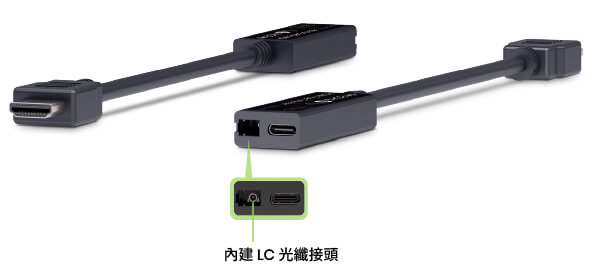

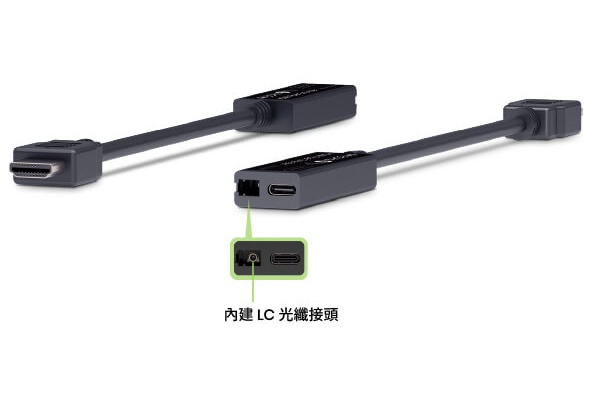

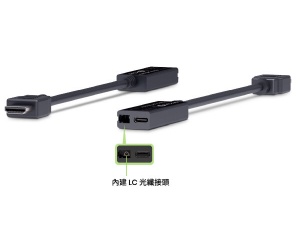

The LC connector is pre-installed, requiring only an LC multi-mode fiber cable to connect the transmitter and receiver.

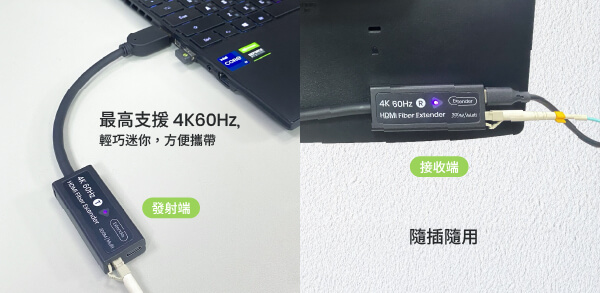

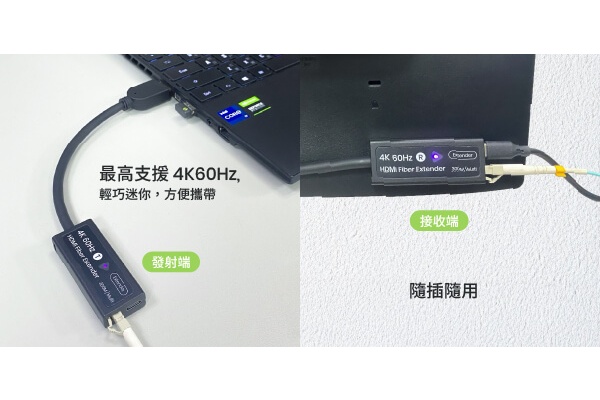

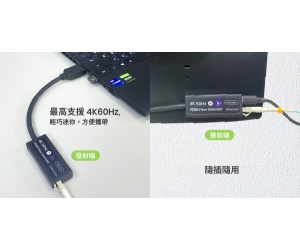

The HE01FE-4K6G transmitter draws 5V power from the source HDMI port, so only the receiver requires a USB-C power source, making installation more convenient.
Generally, the transmitter does not need an additional power source. However, if operating near the maximum range (300m), connecting a USB-C power source to the transmitter can help amplify the audio-visual signal.
Low latency is crucial for event system planning. According to SC&T tests, the HE01FE-4K6G has a latency of less than one frame over distances of up to 300 meters.
The LED indicator clearly shows the transmission status, allowing for quick and easy troubleshooting.
The HE01FE-4K6G requires no drivers. Simply plug in the HDMI cable, LC fiber cable, and USB-C power to the receiver, and you're ready to go!
