IP01F is an Ethernet to Fiber Converter that can transmit data communication protocols including Ethernet, Fast Ethernet, and Gigabit Ethernet over fiber optics. IP01F can also work as an Ethernet over fiber extender with a transmission distance reaching up to 20km over a single-mode fiber module and single-core fiber cable. The plug-and-play media converter is an ideal solution for CCTV networks, AVoIP systems, and IT infrastructure.
As a high-speed network fiber converter, IP01F has a built-in SC single-mode connector and can be used to extend the network over fibers for up to 20 km with a maximum bandwidth of 1G. For large projects, the long distance and high bandwidth are ideal for connecting large switches in the server room or transmitting multiple cameras or network equipment at once.

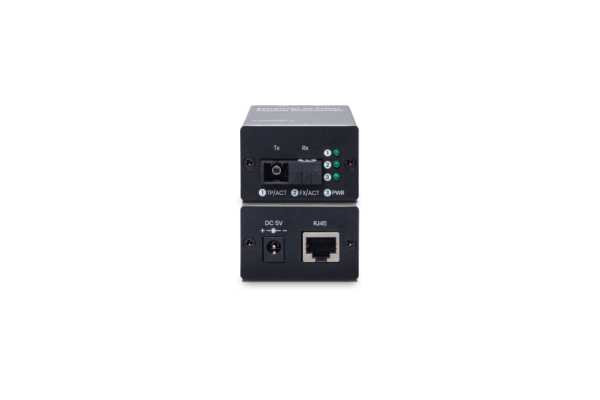

IP01F Front & Back
There are two major types of fiber optic cables: single-mode and multimode. While single-mode fiber is used for long-distance and high bandwidth transmission, IP01F is equipped with single-mode and can reach a long transmission distance of up to 20 km.
IP01F also supports 10/100/1000Base-TX and 1000Base-SX interconversion with up to 1G bandwidth and is backward compatible to reduce the cost of changing equipment.
Large projects usually centralize IP equipment and extend fiber from the control center to the equipment over a long distance while distributing signals.
Supposing the bandwidth consumption of a 1080p, H.264 decoded, 10fps camera is 2.1Mbps, SC&T's Fiber Media Converter with 1G bandwidth can transmit signals of 475 cameras.
| Estimated Bandwidth | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Resolution | 3MP | 5MP | 8MP | ||||||
| Frame Rate | 10fps | 15fps | 30fps | 10fps | 15fps | 30fps | 10fps | 15fps | 30fps |
| H.264 | 2.1 Mb/s | 3.2 Mb/s | 6.4 Mb/s | 3.4 Mb/s | 5.1 Mb/s | 10.2 Mb/s | 5.6 Mb/s | 8.4 Mb/s | 16.8 Mb/s |
| MPEG4 | 3.2 Mb/s | 4.8 Mb/s | 9.6 Mb/s | 9.7 Mb/s | 14.5 Mb/s | 29.1 Mb/s | 16 Mb/s | 23.9 Mb/s | 47.9 Mb/s |
Applciation diagram from SC&T's real case study
As power cannot be transmitted through fiber cables, using fiber cables to transmit signals can prevent the noise caused by electric power. As a result, the use of Ethernet over fiber provides you with better IP (network) signal quality and a better audio/video/networking experience.
There are no concerns about surge damage in fiber transmission, but the metal elements may still be damaged by static electricity.
IP01F has built-in ESD protection to protect your equipment from damage caused by static electricity.
Some of the converters on the market may lack proper design for installation, resulting in chaotic cabling and equipment arrangement.
IP01F can be combined with a wide range of accessories to be installed wherever you want.
If you want to set up more cameras in the same location, you can use SC&T's IP/PoE 4-in-1-out extender: Connect IP09PH and IP09PR/IP09CPR to the existing ethernet/coaxial cable, and you can attach 4 cameras to IP09PH.
Note that the data rate and power may differ depending on transmission distance, cables, PSE adapters, etc. Please read the user manual for detailed specifications or turn to our Technical Support team.
