Explosion-proof Integrated PTZ Infrared Cameras

304 Stainless steel

Manufactured from 304 stainless steel, featuring explosion-proof and dust-proof design.
Suitable for industrial plants and various facilities where explosive atmospheres may be present, including Zone 0, Zone 1, and Zone 2, in which flammable gases or vapors of Group IIA, IIB, and IIC, Temperature Class T1–T6, may form explosive mixtures with air.
Also suitable for hazardous locations where combustible dust and air mixtures may form explosive environments, including Zone 20, Zone 21, and Zone 22.
2MP resolution(1920x1080), infrared illumination distance:80~100m.
Typical applications include oil and petrochemical facilities, steel plants, metal smelting factories, and other industrial environments.

Specification
Model	SGT-EX-S2DBI0233X
Video Compression	H.265 / H.264
Image Sensor	1/2.8” CMOS Seneor
Video Resolution	19201080 / 1280960 / 1280*720
Video Frame Rate	50Hz 25FPS / 60Hz 30FPS
Lens	5.5~188mm Auto Focus Lens
Minimum illumination	Color : 0.001Lux, B/W : 0Lux(IR LED ON)
Electronic Shutter	Auto Electronic Sutter
Noise Reduction	3D DNR
White Balance	Auto White Balance
Network Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Image Adjustment	Brightness / Contrast / Saturation / Sharpness
ONVIF	Yes
Rotation Angle	Horizontal: 0°–360° (continuous rotation); Vertical: −90° to +90°
Rotation Speed	Horizontal: 0.1°/s–30°/s; Vertical: 0.1°/s–30°/s
Communication Interface	RS485 / RS422
Communication Protocol	Pelco-P / Pelco-D
Communication Baud Rate	2400 / 4800 / 9600 / 19200 bps
Auto Scan	Supports 1 scan; up to 5 scans configurable via menu
Auto Cruise	Supports 1 cruise; up to 8 cruises configurable via menu
Pattern/Trace	Supports 1 pattern; up to 200 control commands can be recorded
Home Position	Can be set to 1 preset, 1 auto cruise, 1 auto scan, or 1 pattern
Power	AC 110V~220V
Housing Material	304 Stainless Steel
Surface Finish	Natural Stainless Steel Finish
Explosion Protection Marking	Ex d ⅡC T6 Gb/EX tD A21 IP68 T80℃
Ingress Protection	IP 68
Operation Temperature	-30℃~70℃
Operation Humidity	≤95%(+25℃)

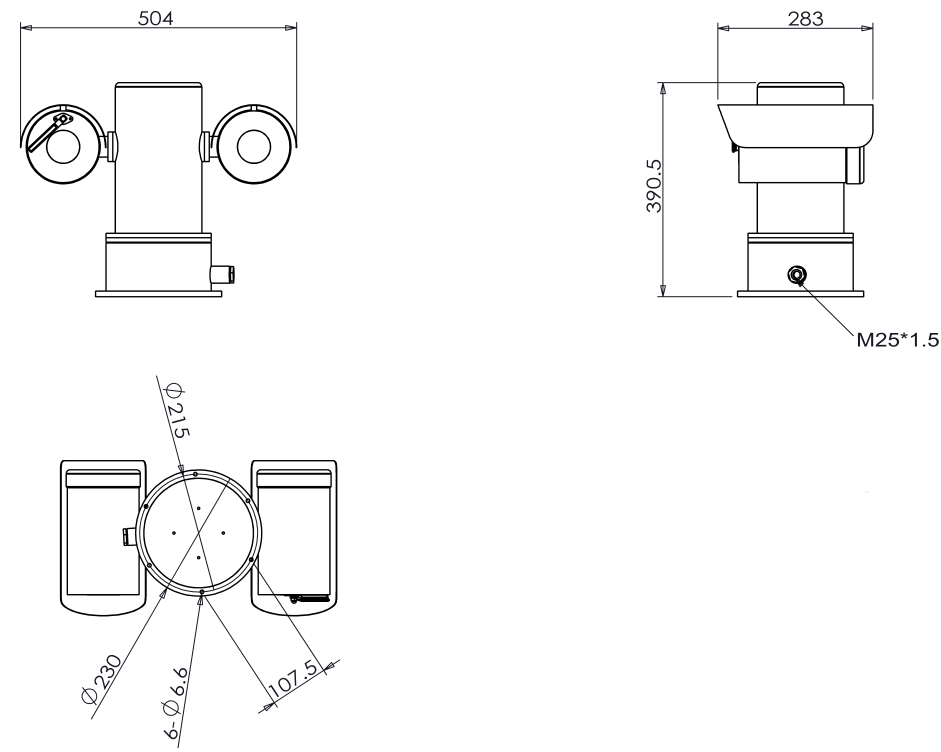

Dimensions	504(L) mm x 390.5(H) mm
Weight	---
