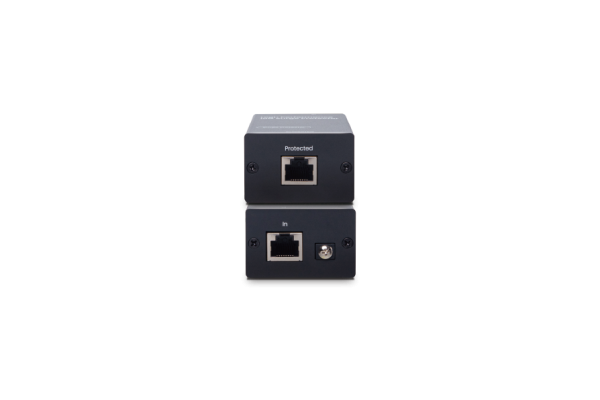

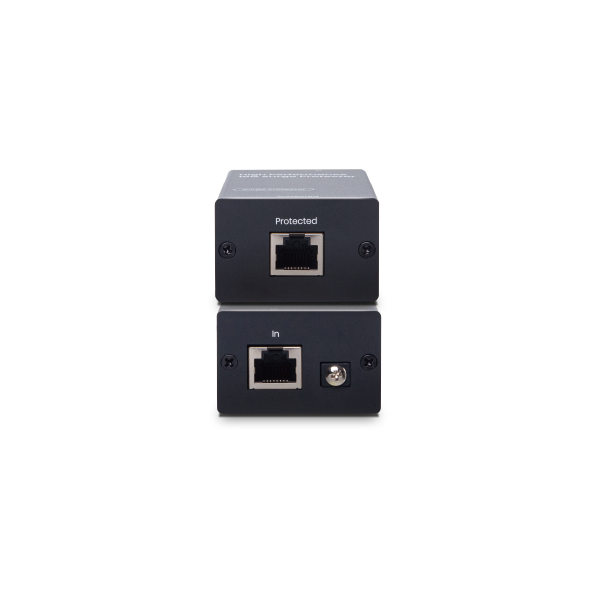

SP006PH-10G is an in-line surge protector designed for preventing damage to PoE (Power over Ethernet) devices from high voltage surges.
|
Specification |
|
|
Model |
SP006PH-10G |
|
Support |
|
|
Compliance |
IEEE 802.3af PoE |
|
Data Rate |
10/100/1000/10000 Mbps |
|
Response Time |
＜1ns |
|
Operation Voltage |
＜58V |
|
Operating Current |
8A |
|
Surge Discharge Current |
20KA (8/20us) |
|
Peak Pulse Current |
200A (10/1000us) |
|
Protection Mode |
Differential/Common Mode |
|
Insulation Resistance |
＞10000Ω |
|
Capacitance (line to line) |
＜2.5pF |
|
ESD Protection |
± 30KV (Contact & Air) |
|
Ports & Interfaces |
|
|
Data Input |
1 x RJ45 |
|
Data Output |
1 x RJ45 |
|
Ambient Temperature |
|
|
Operation |
-40 to 70℃ |
|
Storage |
-40 to 90℃ |
|
Max. Operating Altitude |
-2000m |
|
Humidity |
Up to 95% |
|
Physical Characteristic |
|
|
Mounting |
Rack-Mount / Wall-Mount / Din-Rail |
|
Dimension |
67 x 87 x 27mm |
|
Weight |
160g |
