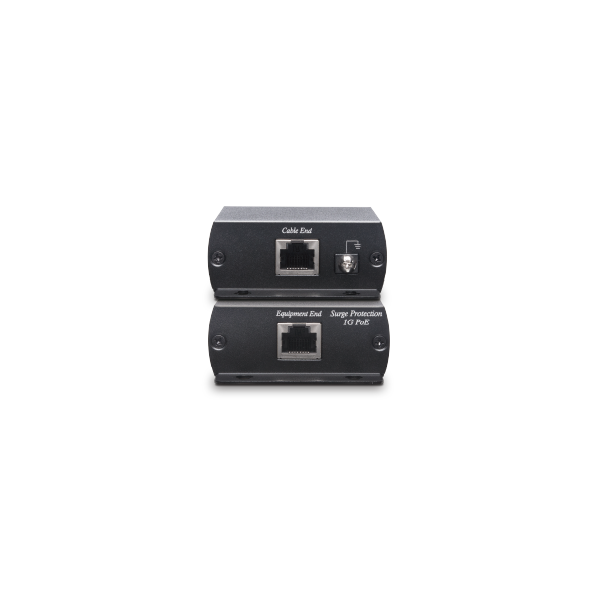

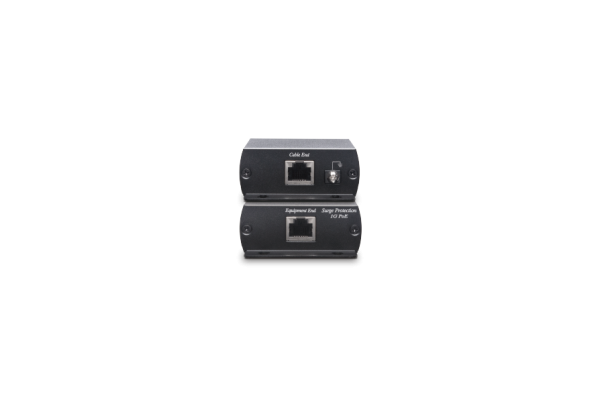

SP006PH is an in-line surge protector designed to protect PoE (Power over Ethernet) devices from high voltage surges, with network bandwidth up to 1000Mbps.
|
Specification |
|
|
Model |
SP006PH |
|
Support |
|
|
Compliance |
IEC 61000-4-2, IEC 61000-4-5 |
|
Network Bandwidth |
10/100/1000 Mbps |
|
Response Time |
＜1ns |
|
ESD Protection |
30KV (Air), 30kV Contact) |
|
Lightning Protection |
10KA (8/20 us), 20KV (8/20 us) |
|
Ports & Interfaces |
|
|
Equipment End |
1 x RJ45 |
|
Cable End |
1 x RJ45 |
|
Ambient Temperature |
|
|
Operation |
-40 to 70℃ |
|
Storage |
-40 to 90℃ |
|
Humidity |
Up to 95% |
|
Physical Characteristic |
|
|
Dimension |
67 x 87 x 27mm |
| Weight |
160g |
