4 CH PoE
|
Specification |
|
|
Model |
XPTN-9000-45-1GX4GP |
|
Single Mode Fiber |
20/40/60/80/100KM |
|
Multi Mode Fiber |
550m |
|
Fiber Interface |
1CH 1000 Base-X |
|
Network Topology |
Star Topology / Bus Topology / Tree Topology |
|
Network Interface |
4CH 10/100/1000 Base-T |
|
PoE |
4CH 802.3af / 8023.at (Max. 30W per port) |
|
Layer |
Layer 2 |
|
Switching Capacity |
12G |
|
Packet Forwarding Rate |
8.928Mpps |
|
Mac Address Table |
2K |
|
Buffer Memory |
1M |
|
Forwarding Latency |
<10us |
|
Polarity Reversal Protection |
Yes |
|
Jumbo Frame |
Supports up to 9Kbytes |
|
Power Input |
DC 48V~58V |
|
Operation Temperature |
-40°C ~ 75°C |
|
Operation Humidity |
10% ~ 90% |
|
Dimensions |
31 × 91 × 118 (mm) |
|
Weight |
0.38 kg |
|

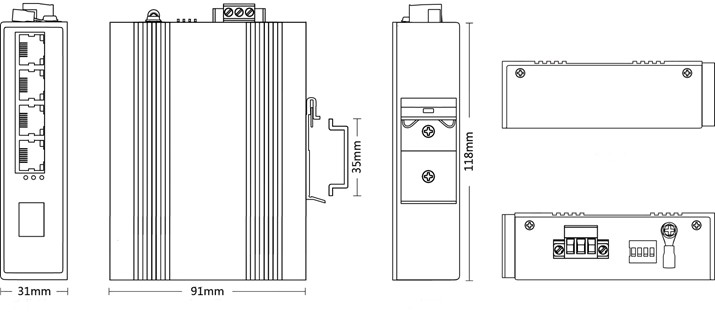

Appearance |
|
|
