4 CH PoE
|
Specification |
|
|
Model |
XPTN-9000-65-5GP-X |
|
Network Topology |
Star Topology / Bus Topology / Tree Topology |
|
Network Interface |
5CH 10/100/1000 Base-T |
|
PoE |
4CH 802.3af / 8023.at (Max. 30W per port) |
|
Layer |
Layer 2 |
|
Switching Capacity |
10G |
|
Packet Forwarding Rate |
7.44Mpps |
|
Mac Address Table |
8K |
|
Buffer Memory |
1M |
|
Forwarding Latency |
<5us |
|
Polarity Reversal Protection |
Yes |
|
Jumbo Frame |
Supports up to 10Kbytes |
|
Watch Dog |
Yes |
|
Power Input |
DC 48V~58V |
|
Operation Temperature |
-40°C ~ 85°C |
|
Operation Humidity |
5% ~ 95% |
|
Dimensions |
143 × 104 × 65 (mm) |
|
Weight |
0.75 kg |
|

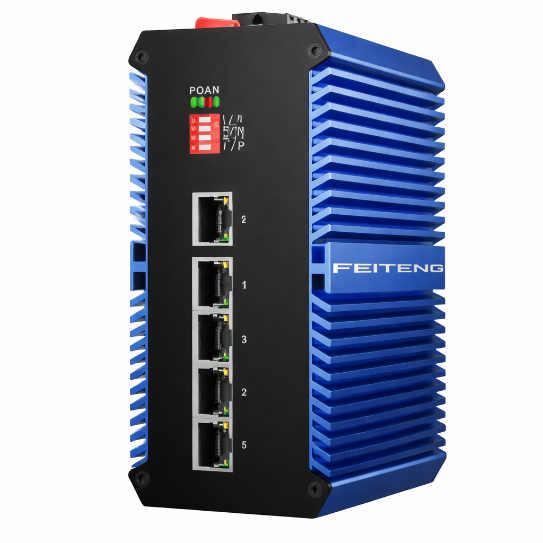

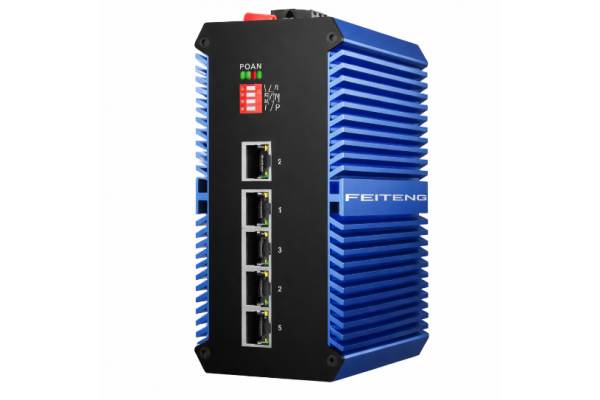

Appearance |
|
|
