8 CH PoE
|
Specification |
|
|
Model |
XPTN-9000-45-8GP |
|
Network Topology |
Star Topology / Bus Topology / Tree Topology |
|
Network Interface |
8CH 10/100/1000 Base-T |
|
PoE |
8CH 802.3af / 8023.at (Max. 30W per port) |
|
Layer |
Layer 2 |
|
Switching Capacity |
16G |
|
Packet Forwarding Rate |
11.9Mpps |
|
Mac Address Table |
4K |
|
Buffer Memory |
2M |
|
Forwarding Latency |
<3us |
|
Polarity Reversal Protection |
Yes |
|
Jumbo Frame |
Supports up to 9216 byte |
|
Power Input |
DC 48V~58V |
|
Operation Temperature |
-40°C ~ 75°C |
|
Operation Humidity |
10% ~ 90% |
|

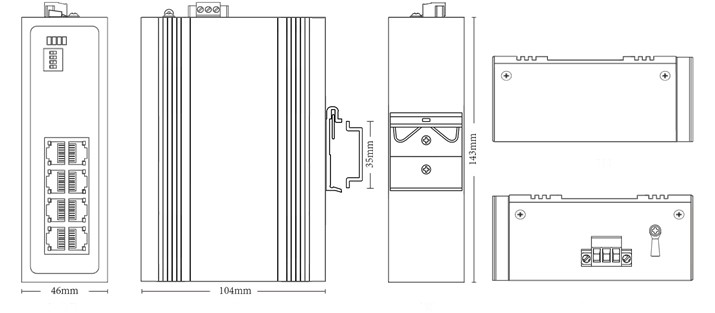

Dimensions |
46 × 104 × 143 (mm) |
|
Weight |
0.6 kg |

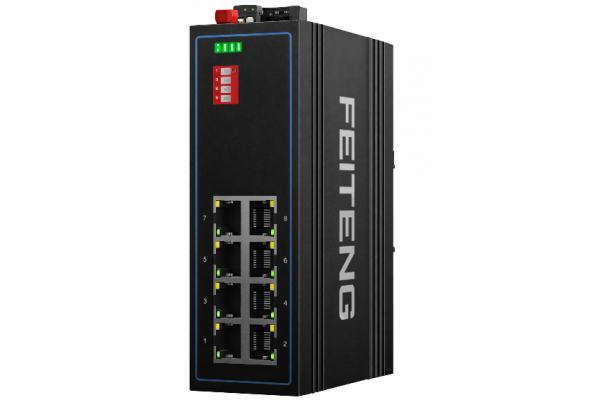

Appearance
| Appearance |
|
 |
